Wiped Film Evaporator

1. Operation can be carried out at a lower temperature to reduce the thermal decomposition of the hemp material.

2. Short heating time, so particularly suitable for the evaporation of heat sensitive materials.

3. High evaporation rate and large operational flexibility.

TOPTION brand stainless steel wiped film evaporator has unique advantages

- Small vacuum pressure drop.

- Low operating temperature.

- Short heating time, so particularly suitable for the evaporation of heat sensitive materials.

- High evaporation rate.

- Large operational flexibility.

molecular distillation equipment supplier

Technical parameters of 12 Inch wiped film evaporator

Model	MDS-50C 12 Inch wiped film evaporator
Material tank	50L jacketed tank
Material tank	2 sight glass at top, with insulated ball valve.
Material charging	Gear pump
	Flow 10L～50L/H
	750W frequency control
Evaporator	Evaporation area 0.5㎡
	Film forming way: scraper (roller is optional)
	Material: 316L
	Mechanical seal (Magnetic seal is optional)
	Film forming motor: 1.5KW, frequency control of motor speed
Cold trap	1. 1㎡chiller cooling cold trap
	2. 5L liquid nitrogen cold trap
	3. Dual-purpose (chiller & liquid nitrogen cold trap dual purpose).
	Choose 1 in above 3 types
Heavier component discharge	Gear pump
	Flow 10L～50L/H
	750W frequency control of motor speed
Lighter component discharge	Gear pump
	Flow 10L～50L/H
	750W frequency control of motor speed

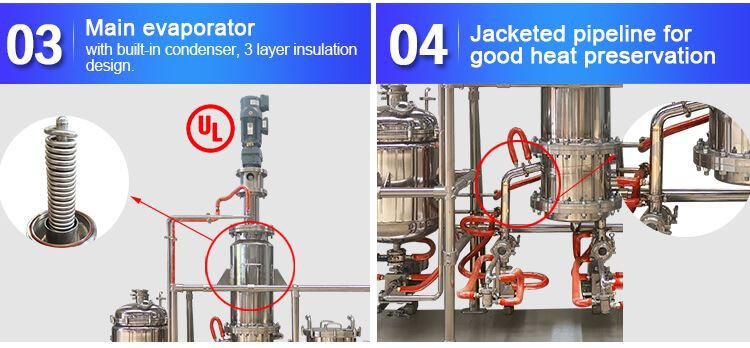

Material pipeline	Jacketed insulation
Shelf & assemble	304 stainless steel pipe

Quality is our culture, choose TOPTION wiped film molecular distillation equipment to achieve clean and clear cbd oil, turnkey solution include heating and cooling circulating bath, vacuum pump, could help you save time and cost. If you're a new starter in cbd industry, we provide technical support based on more than 15 years distillation equipment development and production experience, if you want to upgrade your production process, TOPTION will be your TOP OPTION, professional customization according to your actucal needs.

Gear pump design for 24hours continuously working, CE UL certification configurations are available, if you want to produce clean and clear cbd oil, Welcome contact salesj@toptionlab.com to get free technical support, factory lowest discount help you save cost, you don't need to worried about the shipment or installtion problem, we could help to solve.
