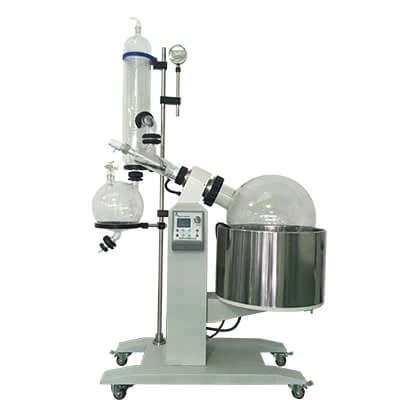

10L Rotary Evaporator New Design
Rotary evaporator is mainly used in pharmaceutical, chemistry and bio-pharmaceuticals industries, for concentration, crystallization, drying, separation and solvent recovery.
Main technical parameters of this set fractionating distillation rotary evaporator:
1. Capacity available: 10L, 20L, 30L, 50L.
2. Down mode: Automatic electric lift, easy operation.
3. The speed range(rpm): 5～110rpm.
4. Temp range (℃): RT～98 (water bath), oil bath is optional.
5. Condenser: Vertical type, double serpentine tube + vice condenser.
6. Rotating bottle max capacity (L): 10L, 20L, 30L, 50L optional.
7. Max capacity to collect bottle (L):10L + 10L (other volume optional), with vacuum shut off valves to swap from one receiving flask to another while one is draining.
8. Motor power (W): 90, bath power: 5KW. Voltage: 220V 50/60Hz.
9. Evaporation speed (alcohol): 5L.
10. With inside automatic check valve (when collection bottle is full and need to discharge, check valve will shut automatically when exhausting valve open. So the whole vacuum system for rotary evaporator (exclude the collection bottle) will be locked.
The vacuum system will have not too much difference once collection bottle re-work. It makes the distillation jobs more continuously and effective.
11. With wheels for easy movement.
CE certified rotary evaporator manufacturer, rota evaporation equipment factory directly sale, guarantee reliable quality, cheapest price, professional customize, now contact salesj@toptionlab.com for factory visit or free consultation of rotary evaporator price.
