Toption's Efficient Stainless Steel Crystallisation Equipment purifies crystals to over 99% purity. Efficient Stainless Steel Crystallisation Equipment is a device used to control and promote the formation and growth of crystals. Crystallization is the process by which a substance forms an orderly arrangement of solid crystals from a solution or gas phase. The solubility of most solids increases with temperature. This means that the amount of solute that can be dissolved in the solvent increases as the temperature rises. Efficient Stainless Steel Crystallisation Equipment is widely used in chemical, pharmaceutical, food, material science, and other applications.
Instruction
The choice of stainless steel crystallization equipment depends on the specific application requirements. Different crystallization equipment may have different sizes, capacities, and operational control features. Some advanced crystallization equipment may also be equipped with online monitoring and control systems to monitor the crystal formation and growth process in real-time and make adjustments as required.
product use
Various key functions
High-temperature and high-pressure reaction: the equipment is capable of withstanding chemical reactions under high-temperature and high-pressure conditions, suitable for various synthesis and crystallization processes.
Intelligent control system: Equipped with an advanced control system, it can precisely control the temperature, pressure, and stirring speed to meet the requirements of different reactions.
Safety and reliability: made of corrosion-resistant stainless steel to ensure the durability and long-term stability of the equipment. The equipment is also equipped with safety valves and transition devices to ensure safe operation.
Versatile design: the devices come with a variety of configurations and options to suit different experimental needs. They can be equipped with different types of stirrers, temperature sensors, and other accessories to meet the requirements of different reactions.
paramenters

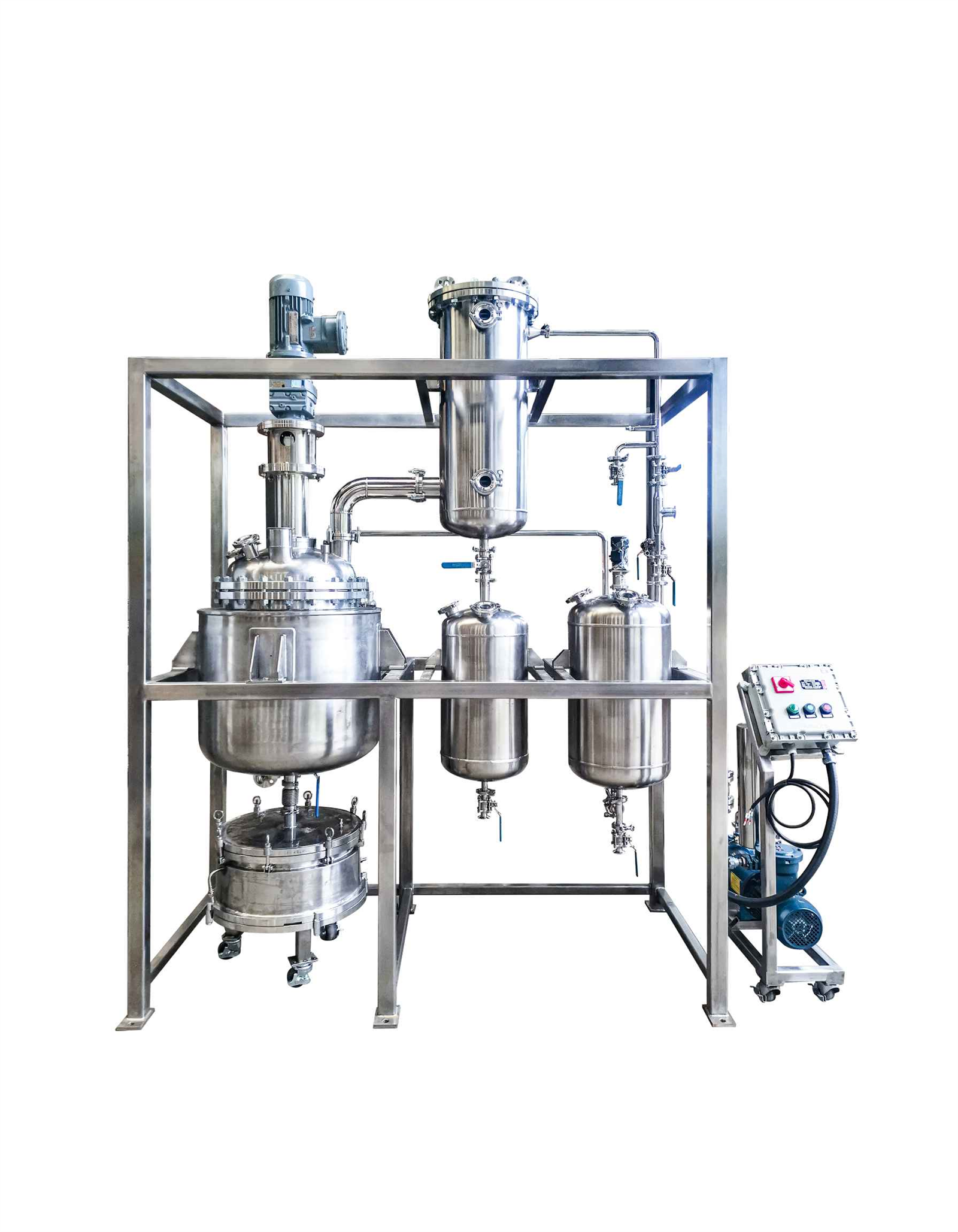

| Model | 50L crystallization reactor |
| Material | High quality SS304 stainless steel |
| Drive mode | Magnetic drive, static seal |
| Stirring power | 750W, variable frequency speed regulation |
| Heating method | Jacketed heating cycle, jacketed design with 70mm insulation layer |
| Heat exchange area | 1 m2 |
| Solvent tank capacity | 30L |
| Mother liquid tank | 30L |

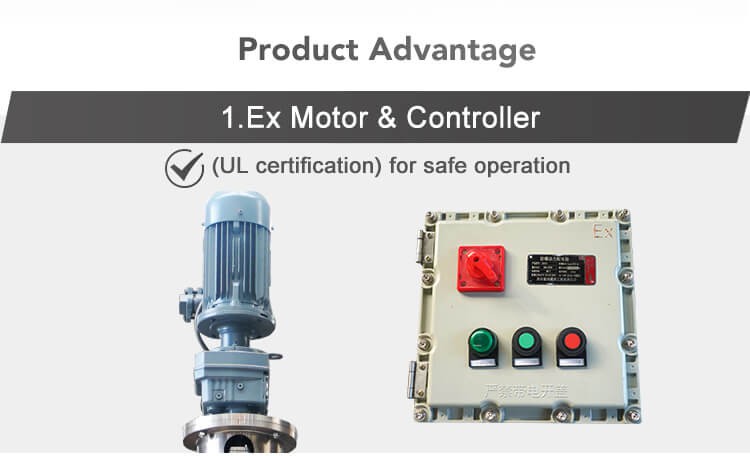

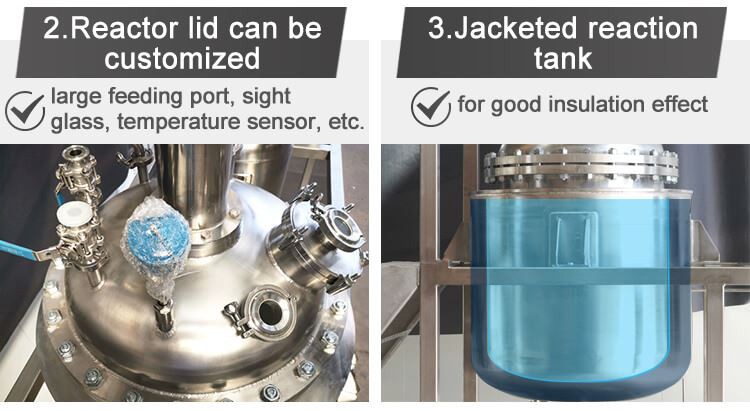

| 1 | UL certified motor | 2 | Customized reactor lid |
| 3 | Jacketed insulation reactor | 4 | Ladder design |

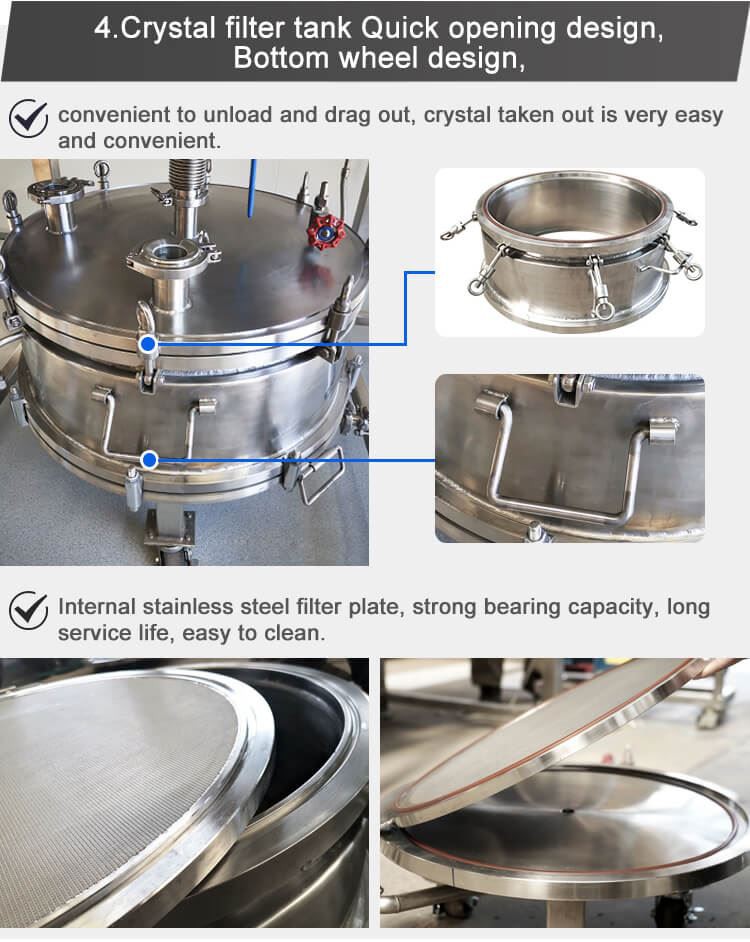

| 5 | Crystal filter tank | 6 | Stainless steel filter |

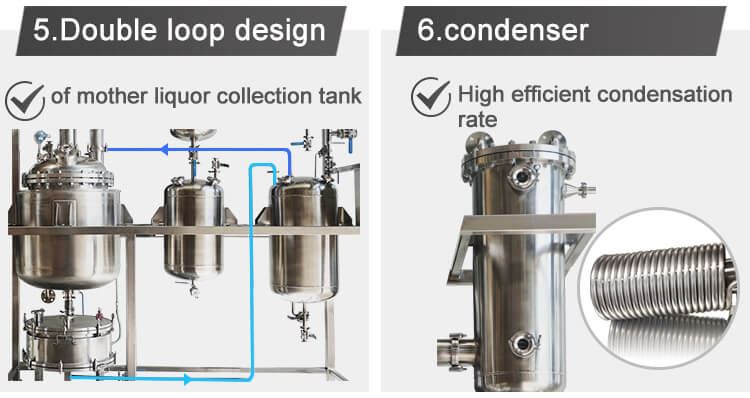

| 7 | Condenser | 8 | Collection tank |
| 9 | Mother liquid collection tank | 10 | UL certified motor |
Products Advantage
Application
Stainless steel crystallization equipment plays an important role in many fields. In chemical synthesis, crystallization equipment is used to purify compounds, separate impurities, and obtain the desired crystal form. In the pharmaceutical industry, crystallization plants are used to prepare pure drug crystals and drug intermediates. In the food industry, crystallization equipment is used to extract and purify food additives and natural products. In the field of material science, crystallization equipment is used to grow single-crystal materials and nanoparticles.
The choice of crystallization equipment depends on the specific application requirements. Different crystallisation equipment may have different sizes, capacities, and operational control features. Some advanced crystallisation equipment may also be equipped with online monitoring and control systems to monitor the crystal formation and growth process in real-time and make adjustments as required.
TOPTION is dedicated to the R&D, production, sales and service of extraction, filtration, evaporation, distillation, crystallisation and drying equipment. Choosing TOPTION is your advantage to get reliable technical support; if you want to upgrade your existing production line, TOPTION will be your TOP OPTION, please contact info@toptionlab.com for professional customised service.
