Name: Short Arc Xenon Lamp Source, Xenon Lamp Photochemistry Supplier
Brand: TOPTION
SKU: 21217033

TOPTION is a Short Arc Xenon Lamp Source and xenon Lamp Photochemistry Supplier, with more than 18 years of development, research, production, sale, and service experience, through CE, ISO certification, reliability in quality, technical support, professional customization, hot sale lamp source in stock fast delivery, factory directly sale with most competitive price.

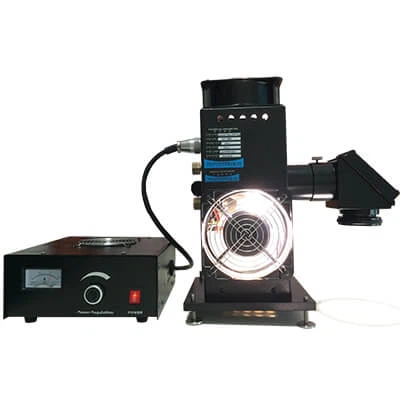

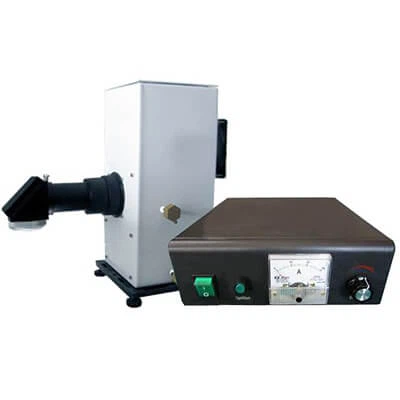

Spherical Xenon Light Source (2)

Main features of short arc xenon light source

1.Spectral range from UV to VIS(200-2500nm).

2. Optical axis height is 157-193mm.

3. Output beam diameter is 46mm.

4. Supports a wide range of accessories.

5. Fan-cooled housing.

Technical configurations of TOPTION short acr xenon light source

Model	Description	Details
TOP-X75	75W Xenon Light Source	75W Xenon Light Source includes housing (TSH-X75), power supply(TSP-X75), and Lamp(TSL-X75), the filter is optional, pls refer to the following sheet.
TOP-X100	100W Xenon Light Source	100W Xenon Light Source includes housing (TSH-X100),power supply (TSP-X100) and Lamp (TSL-X100), the filter are optional.
TOP-X150	150W Xenon Light Source	150W Xenon Light Source includes housing (TSH-X150),power supply(TSP-X150)and Lamp(TSL-X150), the filter are optional.
TOP-X180	180W Xenon Light Source	180W Xenon Light Source includes housing (TSH-X180),power supply(TSP-X180)and Lamp(TSL-X180), the filter are optional.
TOP-X250	250W Xenon Light Source	250W Xenon Light Source includes housing (TSH-X250),power supply(TSP-X250)and Lamp(TSL-X250), the filter are optional.
TOP-X300	300W Xenon Light Source	300W Xenon Light Source includes housing (TSH-X300),power supply(TSP-X300)and Lamp(TSL-X300), the filter are optional.
TOP-X450	450W Xenon Light Source	450W Xenon Light Source includes housing (TSH-X450),power supply(TSP-X450)and Lamp(TSL-X450), the filter are optional.
TOP-X500	500W Xenon Light Source	500W Xenon Light Source includes housing (TSH-X500),power supply(TSP-X500)and Lamp(TSL-X500), the filter are optional.
TOP-X550	550W Xenon Light Source	550W Xenon Light Source includes housing (TSH-X550),power supply(TSP-X550)and Lamp(TSL-X550), the filter are optional.
TOP-X700	700W Xenon Light Source	700W Xenon Light Source includes housing (TSH-X700),power supply(TSP-X700)and Lamp(TSL-X700), the filter are optional.
TOP-X900	900W Xenon Light Source	900W Xenon Light Source includes housing (TSH-X900),power supply(TSP-X900)and Lamp(TSL-X900), the filter are optional.
TOP-X1000	1000W Xenon Light Source	1000W Xenon Light Source includes housing (TSH-X1000),power supply(TSP-X1000)and Lamp(TSL-X1000), the filter are optional.
TOP-X1600	1600W Xenon Light Source	1600W Xenon Light Source includes housing (TSH-X1600),power supply(TSP-X1600)and Lamp(TSL-X1600), the filter are optional.
TOP-X2000	2000W Xenon Light Source	2000W Xenon Light Source includes housing (TSH-X2000),power supply(TSP-X2000)and Lamp(TSL-X2000), the filter are optional.

1. Xenon arc lamp light sources are the preferred artificial sources to simulate sunlight. The high color temperature(6000K) of the Xenon lamps is a close match to the solar temperature. This results in very similar solar spectra in the UV and VIS although the source has some Xenon emissions lines in the near IR.

2. Application for fluorescence, Luminescence and Phosphorescence, Absorbance and Reflectance, Photochemistry, Photolithography, Detection of optical Schlieren, Solar simulation.

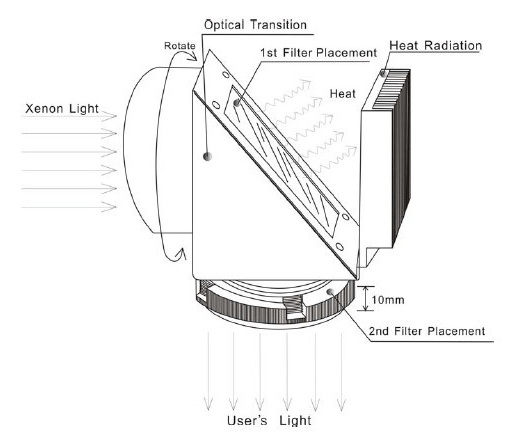

3.A spherical reflector collects the output from the rear of the lamp and focuses it on or near the arc, for collection by the condenser.The output is increased by as much as 60 %.

4.The housing has precise external lamp adjusters.They let you place the arc where you want it. This is important for simplifying fiber and slit illumination. In many applications, this eliminates the need for adjust any optics located beam path outside the housing.

3rd party certification of xenon lamp source

xenon lamp source exhibation
