Crystallization reactor
Hot selling 50L crystallization reaction jacketed glass reactor with automatic lifting design for easy operation and cleaning, support glass reaction vessel downward open automatic lifting customize as below:
Technical parameters of 50L crystallization reactor
1.Jacket glass reactor: 50L volume.

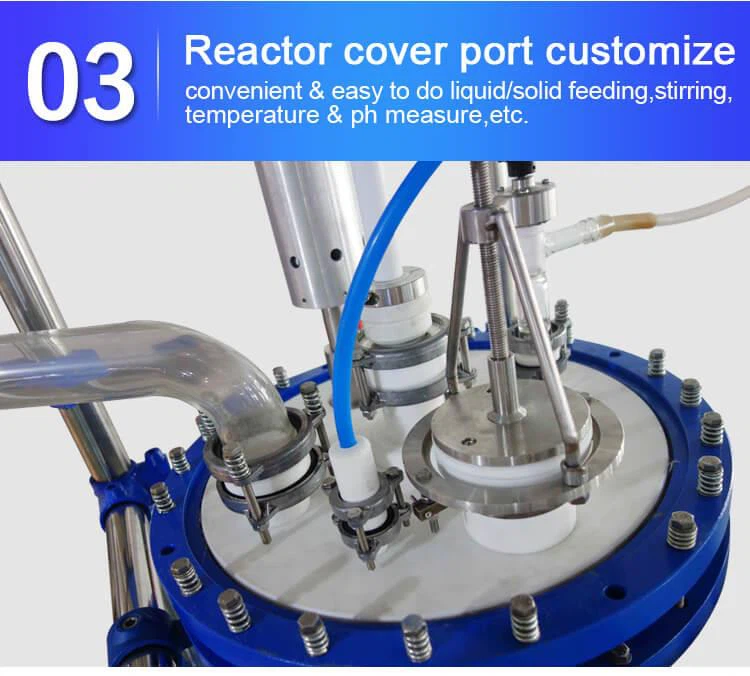

2.Reactor cover port: total six ports: stirrer port, ph port, liquid feeding port, temp port, vent port, solid feed port.
3. with stirrer.
4. with ultrasonicator to homogenize materials at the same time.
5. with bottom filter plate, can filter material, and filter can be washed and clean easily with electric lift device.
6. with collection flask on right side to receive the material after filtration .
7. with cold trap and collection flask to protect pump.
8. Vacuum pump and heater or chillers are optional, base on your working condition.
10. Ultrasonic power 2500W.
11. Sand core filter plate with PTFE fixing gland.
12.Stirrer motor: 150W.
13.Working temp: -80℃~ 250℃ (related heating cooling system should be prepared).
14. Working voltage: 220V 60Hz 1 phase.
