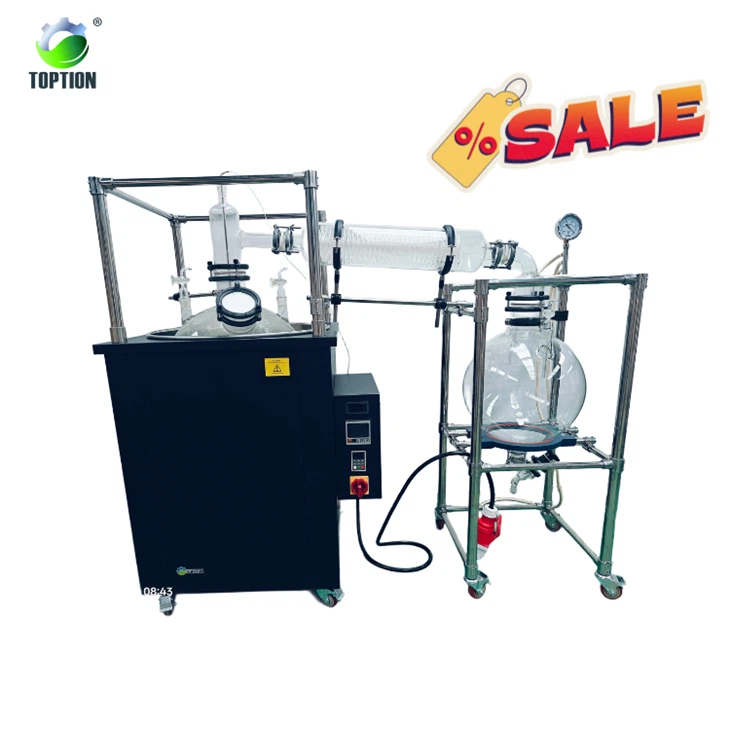

100L Simple Distillation Short Path Distillation Apparatus

■Variable-frequency speed control, high-power magnetic stirring device with constant rotation speed. Brushless, spark-free, safe and stable, capable of sustained long-term operation.

■Complete glassware set manufactured from GG17 or G3.3 high borosilicate glass, offering excellent chemical and physical properties.

■PTFE and rubber composite seals maintain high vacuum levels, ensuring a vacuum up to 0.095 MPa.

■Integrated design for reaction, heating, stirring, reflux, and distillation. Compared to similar equipment, it occupies a smaller footprint and offers high cost-effectiveness.

■Intelligent electric heating with constant temperature control delivers excellent insulation. The temperature range spans from room temperature to 180°C.

■Heating system controlled by solid-state relay assemblies ensures spark-free operation, minimal interference, and extended service life.

■Reaction materials come into contact only with GG17 glass and fully PTFE components, guaranteeing contamination-free processing.

★ Thermal separation of heat-sensitive compounds
★ Purification of organic synthetic substances
★ Isolation of active components from biological extracts
★ Recycling of industrial waste materials
★ Removal of toxic contaminants in the food industry
★ Decolorization and deodorization of organic compounds
★ High-precision removal of residual solvents from compounds

Q1: Can molecular distillation separate two compounds with very close boiling points?
A1: It is challenging, but possible. For example, to raise the ethyl palmitate: palmitic acid ratio from 9:1 to 96% purity, about 10–20% of the material must be distilled out. Customers are encouraged to send samples for feasibility testing.

Q2: What is the molecular distillation process for biodiesel?
A2:

Using two-stage molecular distillation, yields range between 85%–90%.

With four stages, yields improve to 90%–95%.

With six stages, yields can reach 93%–96%.

Q3: What is the difference between simple distillation and short-path distillation?
A3:

For separating conventional, stable liquids with large differences in boiling points, simple distillation is the preferred choice due to its simplicity and low cost.

When handling high-boiling-point, heat-sensitive, oxygen-sensitive precious substances that decompose easily upon heating, short-path distillation becomes an indispensable, powerful tool-despite its higher equipment and operational costs.


Q4: Is the 100L glass simple short-path system compatible with vacuum pumps and refrigeration units?
A4: Yes, we have compatible heating and cooling circulation pumps and refrigeration units.

Q5: How is MCT oil extracted from coconut oil?
A5: The common industrial method includes hydrolysis, rectification, and esterification. The esterified MCT oil is then purified through molecular distillation for high-quality results.
