Xi'an TOPTION Instrument Co., Ltd. is one of the most reliable manufacturers and suppliers of re-2000a 2l rotary evaporator vacuum distillation, rotary vacuum evaporator price in China. We provide high quality solutions & products for global customers who work in chemistry, biology, pharmaceutical, food, etc. If you have any enquiry about lab solution customization, please feel free to email us.
Rotary evaporator lab is suitable for chemistry laboratory, modern organic laboratory, university teaching, to remove solvent from samples by evaporation. ISO & CE certified rota evaporator manufacturer support rotavapor customize.
Technical parameters of 2L rotary evaporator:
RE-2000A RE-2000ADEX | |
Rotating Flask(L) | 2L, 1L optional |
Optional Rotating Flask(L) | 0.1L, 0.25L, 0.5L |
Receiving Flask(L) | 1L |
Lifting Type | Automatic lifting |
Condenser | Vertical |
Rotation Speed (rpm) | 20-200 |
Evaporating Speed (H2O) | 1.2L/H |
Reachable Vacuum Rate | <133Pa (1.33mbar, 1 Torr) |
Bath Power (kw) | 1.5 KW |
Staic Temp. Control Range & Wave (?) | RT-99±2 |
Power | 220V 50/60Hz |
Note: Max evaporating speed is affected by operation setting and the performances and matching levels of supporting equipment. | |
Basic configurations of 2L rotary evaporator:
Relevant Model | RE-2000A rotary evaporator RE-2000ADEx rotary evaporator |
Charging Valve | Glass |
PTFE Discharge Valve | PTFE |
PTFE Rotary Seal Assembly | Have |
Overall Flange Joints | Have |

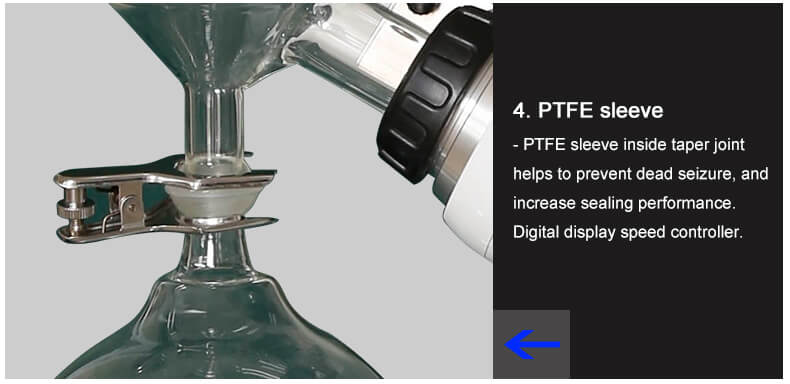

Taper Joint PTFE Sleeve | Have |
Frequency Conversion Speed Control | Have |
Vacuum Meter | Have |
Throttle Valve For Vacuum | Have |
Thermometer Neck For Vapor | Optional |
Continuous Receiving | Have |

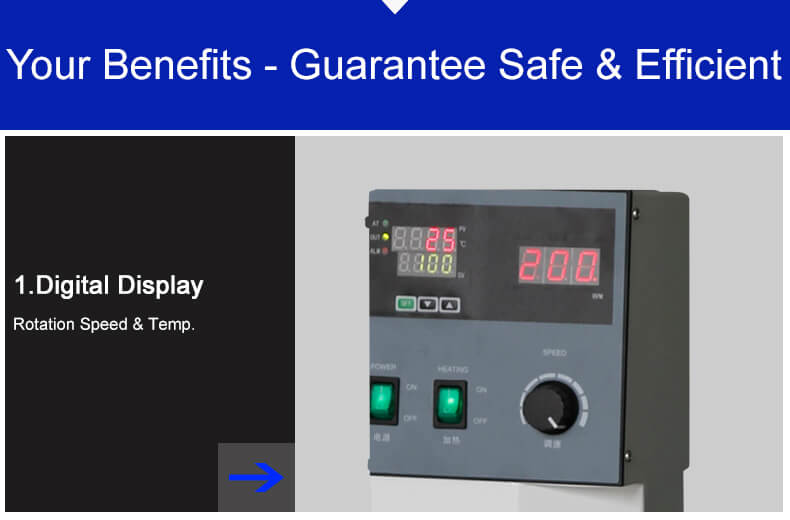

Digital Display | Bath temperature & Rotation speed |
Evaporating Flask Unload Handler | Optional |
Ex-proof Motor | Optional |
Cold Trap Protection System | Optional |
Bumping System | Have |
Optional Evaporating Flask (baffles available at request) | 0.5L |
