Xi'an TOPTION Instrument Co., Ltd. is one of the most reliable manufacturers and suppliers of mini high pressure reactor in China. We provide high quality solutions & products for global customers who work in chemistry, biology, pharmaceutical, food, etc. If you have any enquiry about lab solution customization, please feel free to email us.

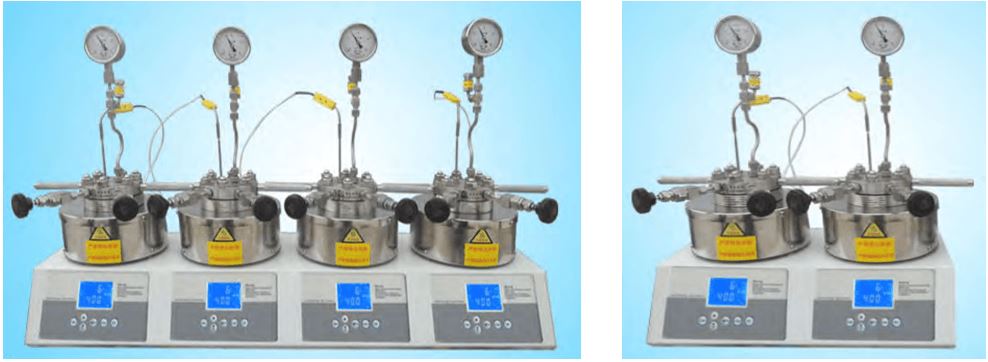

Mini High Pressure Reactor
This laboratory type high pressure reactor make cumbersome experimental simple, it can be realized in one operation with different environments or with different environment temperature/ pressure diversified series of different experiments.
Through the RS232 communication interface a computer connected to print and show the historical value and the actual curve according to user’s needs, the whole system can be monitored real time by software.
Technical parameters of Mini High Pressure Reactor 1000ml :
Small- high-pressure reactor (the Lid can rise ,the reactor can turn,without bottom discharge) | TOPT-KCFD025-10 | 1. Volume:0.25L 2. Design pressure: <10MPa 3. Temp:RT--300°C; 4. Materials:SS304; 5. Agitation type:with Mechanical agitation |
TOPT-KCFD03-10 | 1. Volume:0.3L 2. Design pressure: <10MPa 3.Temp: RT--300°C; 4.Materials:SS304; 5.Agitation type:with Mechanical agitation | |
TOPT-KCFD05-10 | 1. Volume:0.5L 2. Design pressure: <10MPa 3. Temp:RT--300°C; 4. Materials:SS304; 5. Agitation type:with Mechanical agitation | |
TOPT-KCFD1-10 | 1. Volume: 1L 2. Design pressure: <10MPa 3. Temp:RT--300°C; 4. Materials:SS304; 5. Agitation type:with Mechanical agitation | |
TOPT-KCFD2-10 | 1. Volume: 2L 2. Design pressure: <10MPa 3. Temp:RT--300°C; 4. Materials:SS304; 5. Agitation type:with Mechanical agitation | |
TOPT-KCFD5-10 | 1. Volume: 5L 2. Design pressure: <10MPa 3. Temp:RT--300°C; 4. Materials:SS304; 5. Agitation type:with Mechanical agitation |
Features of Mini High Pressure Reactor 1000ml :
Catalysis, high temperature and pressure synthesis, dynamics testing, Fischer- Tropsch, and hydrogenation reaction. Mainly used in the fields of biochemical, chemical material, environmental protection new material reaction, etc.
1.Material: high quality pure titanium or hastelloy alloy.
2.Heating: Heating plate to heat directly, a suitable temperature sensor fitted to measure internal temperature, temperature control accurate, simple and convenient to operate.
3. Pressure gauge, digital pressure indicator in Mpa, pressure safety valve will release gas from vent valve when pressure is higher than safety pressure.
4. Valve pipe fittings are original German imports with standard connectors.
5. Digital display stir speed and temperature on the heating plate.
6.Use patented plug-in stylus K-sensor, standard mixing devices, titanium reactor body, and electric fiber furnace; insert the K-type sensors.
7.Insert temperature, pressure, PH value, conductivity sensors, to ensure accurate measurement of relevant data.

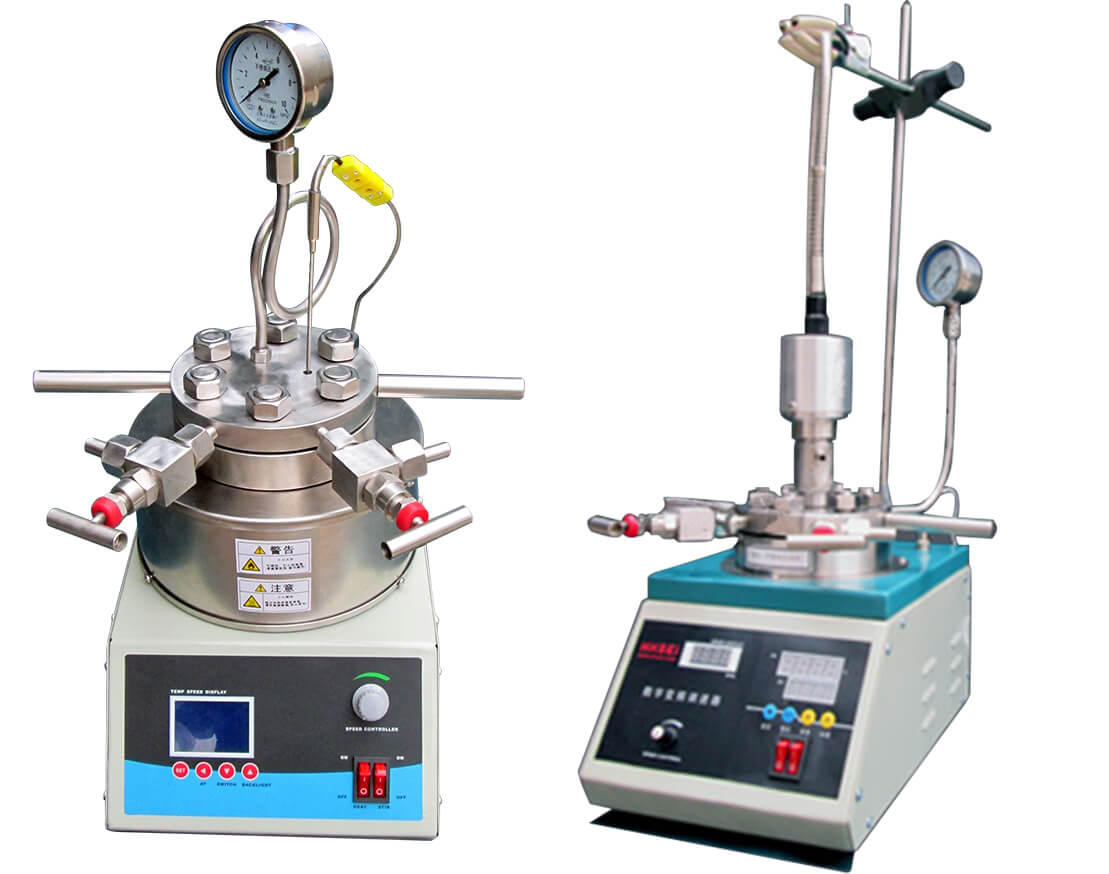

Hotsale high pressure reactor - 0.25L to 50L customize - salesj@toptionlab.com
High pressure reactor factory directly sale, guarantee reliable quality & cheapest price,salesj@toptionlab.com contact now.
