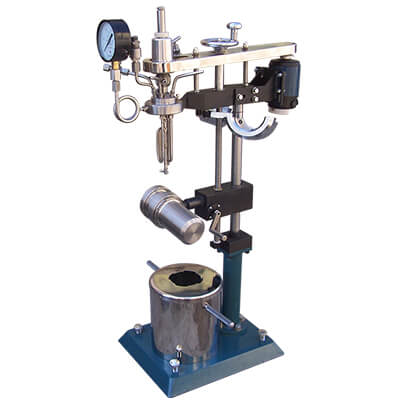

Magnetic Stirrer High Pressure Reactor
Description of magnetic stirrer high pressure reactor china:
High pressure reactor, also known as polymerization reactors, digestion tanks, high pressure digestion tank, pressure vessel, reactor, pressure container bombs, digestion tanks, hydrothermal synthesis reactor, experiment reflects the kettle.
Application of magnetic stirrer high pressure reactor: Chemistry, Pharmaceutical, Macromolecule, Metallurgy, Environmental Protection,etc, chemical process areas.
For instance: high pressure reaction, hydrogenation reaction, catalytic reaction, synthetic process, pharmaceutical synthesis, high pressure polymerization, nano synthesis, conditions screening, crystallization screening, combinatorial chemistry, biomass conversion, supercritical reaction, hydrothermal reaction, polymer synthesis, electrochemical corrosion testing, infrared detection,etc.
Technical parameters of magnetic stir high pressure reactor:
The stirring reactor laboratory miniature high-pressure reaction kettle | ||||
Model | THR50 | THR100 | THR250 | THR500 |
Material capacity(L) | 50ml | 100ml | 250ml | 500ml |
The working interface | LCD Display | LCD Display | LCD Display | LCD Display |
The maximum operating temperature | 250℃ | 250℃ | 250℃ | 250℃ |
The maximum operating temperature with PTFE Liner | 180℃ | 180℃ | 180℃ | 180℃ |
Heating mode | Module heating | Module heating | Module heating | Module heating |
The heating power | 1.2KW | 1.2KW | 1.5KW | 2.0KW |
Stirring speed | 0-1200rpm | 0-1200rpm | 0-1300rpm | 0-1300rpm |
Stirring method | The internal magnetic stirring | The internal magnetic stirring | The internal magnetic stirring | The internal magnetic stirring |
The power | 40W | 40W | 40W | 80W |
The maximum working pressure | 10Mpa | 10Mpa | 10Mpa | 10Mpa |
Materials of construction | SS304 (standard); (SS316L Alloy TA2, ALLOY C-276, Nickel ALlloy, Zirconium materials are optional) | |||
PTFE liner | Optional | |||
Note: | ||||
High pressure reactor factory directly sale, guarantee reliable quality and lowest price, professional customize 0.25L to 50L, welcome contact salesj@toptionlab.com for more.
