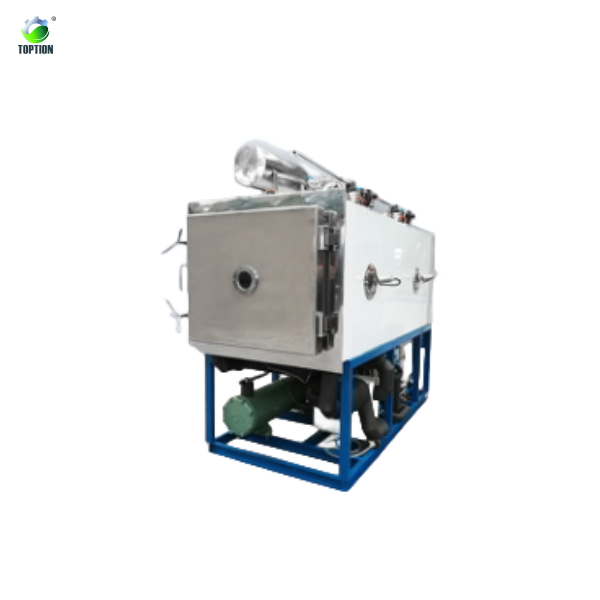

Xi'an TOPTION Instrument Co., Ltd. is one of the most reliable manufacturers and suppliers of pharmaceutical freeze dryer | highly efficient capacity and precise temperature control in China. We provide high quality solutions & products for global customers who work in chemistry, biology, pharmaceutical, food, etc. If you have any enquiry about lab solution customization, please feel free to email us.
overview
Freeze dryer is widely used in medicine, pharmacy, biology research, the chemical industry food production, etc. After the freeze-drying process, the long-term preservation of products is much easier. They can be restored to their original state and maintain their chemical and biological characteristics after being watered.
Products Parameter
| GZLY-1 | GZLY-2 | GZLY-3 | GZLY-5 | GZLY-10 | GZLY-15 | GZLY-20 | GZLY-30 | GZLY-40 | |
| Freeze drying area | 1.152㎡ | 2.16㎡ | 3.24㎡ | 5.25㎡ | 10.5㎡ | 15㎡ | 20.2㎡ | 30㎡ | 40㎡ |
| Condenser temperature | ＜-75℃ | ||||||||
| Partition board temperature | -55℃~70℃ | ||||||||
| Control accuracy | ±1℃ | ||||||||
| Vacuum degree | ＜5Pa | ||||||||
| Cooling method | water cooling | ||||||||
| Water capture capacity | 20kg/24h | 40kg/24h | 60kg/24h | 100kg/24h | ＞200kg/24h | >300kg/24h | 400kg/24h | 600kg/24h | 800kg/24h |
| Partition board size |
480*600mm 4+1 |
610*910mm 4+1 |
480*600mm 6+1 |
750*1000mm 7+1 |
990*1520mm 7+1 |
1520*990mm 10+1 |
1210*1520mm 11+1 |
1520*1800mm 11+1 |
1520*1800mm 15+1 |
| Installed power | 7.5kw | 12kw | 15kw | 24kw | 46kw | 83kw | 85kw | 160kw | 180kw |
| Weight | 1500kg | 2600kg | 2800kg | 4200kg | 7000kg | 9000kg | 11000kg | 15000kg | 20000kg |
| Dimension(mm) |
1640* 1100* 1830 |
2500* 1560* 2020 |
2500* 1560* 2300 |
4000* 1360* 2800 |
5500* 1670* 2800 |
6500* 2300* 3400 |
6500* 1980* 2800 |
7500* 2280* 2900 |
7500* 2280* 3300 |
| Bulk capacity Thickness: 10mm |
10L | 20L | 30L | 50L | 200L | 300L | 450L | 600L | 850L |
| Vial loading number(pcs) | Ф12mm:8400 | Ф12mm:12600 | Ф12mm:16000 | Ф12mm:35000 | Ф12mm:65300 | Ф12mm:95700 | Ф12mm:130400 | Ф12mm:187700 | Ф12mm:56000 |
| Ф16mm:4706 | Ф16mm:6800 | Ф16mm:10000 | Ф16mm:24800 | Ф16mm:46400 | Ф16mm:66400 | Ф16mm:92800 | Ф16mm:133600 | Ф16mm:82200 | |
| Ф22mm:2428 | Ф22mm:3600 | Ф22mm:5300 | Ф22mm:12700 | Ф22mm:23700 | Ф22mm:33900 | Ф22mm:47400 | Ф22mm:68300 | Ф22mm:93000 | |
Products Advantages
As one of the world's most experienced designers and manufacturers of freeze-drying equipment, TOPTION combines unique technology with reliable plant operation. Our TOPTION technology offers you unique economic and technical advantages while providing you with a quality product that is ahead of the competition:
01
Equipment is programmed with pre-freezing and can be set to lyophilize directly after programming
02
PLC control system, touch screen operation, one-button startup, password setting, display of drying curves and data, data storage, USB interface
03
Adjustable temperatures, controlled production process with programmed run prompts for a wide range of materials to be dried
04
The equipment cabin and material tray are made of 304 stainless steel, corrosion-resistant, meeting the GMP standard, making food safe
