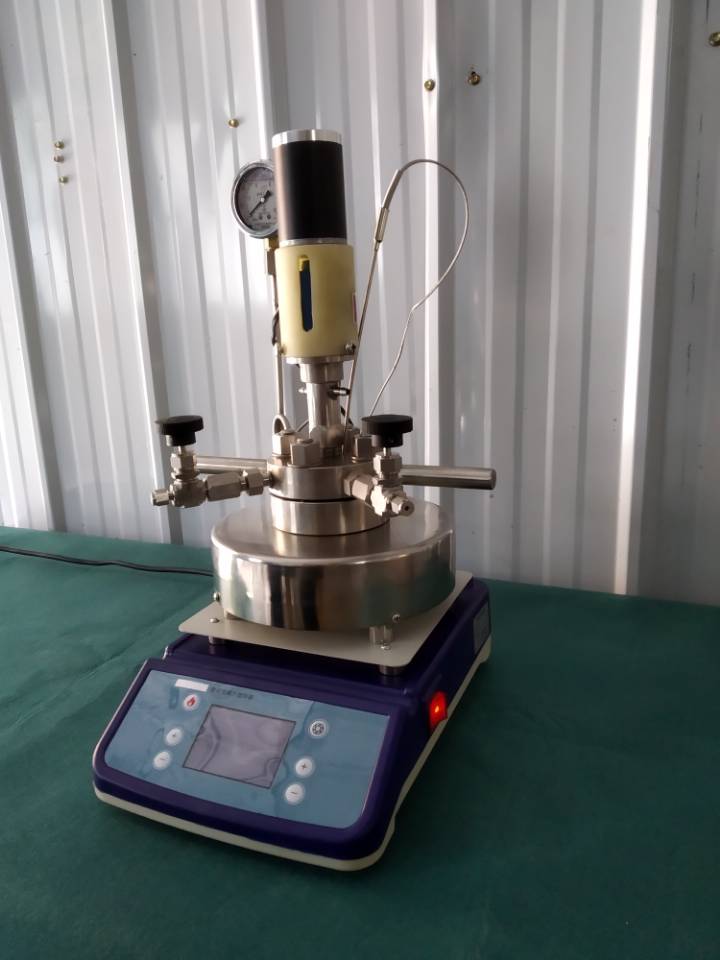

Reactor With High Pressure And High Temperature
High-pressure reactors, also known as polymerization reactors, digestion tanks, high-pressure digestion tanks, pressure vessels, reactors, pressure container bombs, digestion tanks, and hydrothermal synthesis reactors, experiment reflects the kettle.
Technical parameters of the reactor with high pressure and high temperature:
|
Model |
THR50 |
THR100 |
THR250 |
THR500 |
|
Material capacity(L) |
50ml |
100ml |
250ml |
500ml |
|
The working interface |
Touch control liquid crystal display |
Touch control liquid crystal display |
Touch control liquid crystal display |
Touch control liquid crystal display |
|
The maximum operating temperature |
250℃ |
250℃ |
250℃ |
250℃ |
|
The maximum operating temperature with the PTFE Liner |
180℃ |
180℃ |
180℃ |
180℃ |
|
Heating mode |
Module heating |
Module heating |
Module heating |
Module heating |
|
The heating power |
1.2KW |
1.2KW |
1.5KW |
2.0KW |
|
Stirring speed |
0-1200rpm |
0-1200rpm |
0-1300rpm |
0-1300rpm |
|
Stirring method |
The internal magnetic stirring |
The internal magnetic stirring |
The internal magnetic stirring |
The internal magnetic stirring |
|
The stirring power |
40W |
40W |
40W |
80W |
|
The maximum working pressure |
10Mpa |
10Mpa |
10Mpa |
10Mpa |
|
Materials of construction |
SS316L (standard); (Alloy TA2, ALLOY C-276, Nickel ALlloy, Zirconium materials are optional) |
|||
|
PTFE liner |
Optional |
|||
|
Model |
MHR50 |
MHR100 |
MHR250 |
MHR500 |
|
|
Material capacity(L) |
50ml |
100ml |
250ml |
500ml |
|
|
The working interface |
Touch control liquid crystal display |
||||
|
The maximum operating temperature |
250℃ |
250℃ |
250℃ |
250℃ |
|
|
The maximum operating temperature with the PTFE Liner |
180℃ |
180℃ |
180℃ |
180℃ |
|
|
Heating mode |
Module heating |
Module heating |
Module heating |
Module heating |
|
|
The heating power |
1.2KW |
1.2KW |
1.5KW |
2.0KW |
|
|
Stirring speed |
0-1200rpm |
0-1200rpm |
0-1300rpm |
0-1300rpm |
|
|
Stirring method |
Rare earth permanent magnetic coupling drive |
||||
|
The stirring power |
40W |
40W |
40W |
80W |
|
|
The maximum working pressure |
10Mpa |
10Mpa |
10Mpa |
10Mpa |
|
|
Materials of construction |
SS316L (standard); (Alloy TA2, ALLOY C-276, are optional) |
||||
|
PTFE liner |
Optional |
||||
Features of Reactor with High Pressure and High Temp :
1. Reasonable structure, non-spill of hazardous substances, pollution reduction, and safety guarantee.
2. Samples indissolvable under normal conditions and samples containing volatile elements can dissolve quickly in a Hydrothermal synthesis reactor without loss.
3. Easy operation and reliable data.
4. Stainless still shell, good corrosion resistance.
5. Beautiful appearance, reasonable structure, easy operation and shorten the analysis time, reliable data.
6. Can replace the platinum crucible to solve the analysis of trace elements in high purity alumina dissolving deal with problems.
Professional customize high-pressure reactor (contact salesj@toptionlab.com ):
