Products Description
The low-temperature stirred reaction bath is a highly efficient reaction condition that enables reactions to be carried out at low temperatures, thereby increasing reaction efficiency and product quality. This reaction condition involves stirring the reactants to increase the reaction contact area, improve the solubility of the reactants, reduce by-products, and improve product quality and purity. Additionally, the low-temperature stirred reaction bath can also reduce pollution and risks during the reaction process, improving the safety and controllability of the reaction. Therefore, the low-temperature stirred reaction bath is an ideal reaction condition suitable for various chemical reactions and industrial production.
Technical Parameters
|
Specification |
model |
DFY-5/80 |
||
|
Operating temperature range |
-80℃ to 99℃ |
|||
|
Ambient temperature, relative humidity |
≤30℃,60% |
|||
|
Operating voltage |
110V±10％ 50Hz |
|||
|
Total Power |
2.7KW |
|||
|
Total current |
11.8A |
|||
|
Cooling capacity |
Normal temperature |
2.04KW |
||
|
0℃ |
1.85KW |
|||
|
-40℃ |
1.2KW |
|||
|
-80℃ |
0.17KW |
|||
|
Temperature Sensor |
PT100 temperature control accuracy ±1℃ |
|||
|
Reservoir capacity |
5L |
|||
|
Reservoir dimensions, opening |
22*18cm Opening 18cm |
|||
|
Temperature control accuracy |
±0.1℃ |
|||
|
Constant temperature accuracy |
±1℃ |
|||
|
Security Protection |
Overvoltage, delay, overcurrent, |
|||
|
compressor |
type |
2 fully enclosed compressors |
||
|
Power, current |
1.5KW, 6.9A |
|||
|
refrigerant |
R404,F23 |
|||
|
Condenser |
type |
Air Cooling |
||
|
Fan Type |
External rotor fan |
|||
|
Evaporator |
type |
Coil heat exchange |
||
|
Heater |
type |
Heating tube |
||
|
Heating power, current |
1KW, 4.5A |
|||
|
Circulatory system |
Power, current |
25W,0.12A |
||
|
Flow, head |
Flow rate 15 L/min, head 8 meters |
|||
|
Control System |
LCD display |
CNC key operation, resolution 0.1℃ |
||
|
Display content |
|
|||
|
Plug specifications |
||||
|
Fuse specifications |
||||
|
Number of standard fuses |
||||
|
Interface diameter |
Φ10mm |
|||
|
Silicone tube outer diameter |
12mm |
|||
|
Silicone tube inner diameter |
8mm |
|||
|
Silicone tube length |
3.8m*1 |
|||
|
Insulation sleeve length |
1.8m*2 |
|||
|
Shell material |
Plastic sprayed cold rolled steel plate |
|||
|
Shell thickness |
1mm |
|||
|
Appearance |
weight |
81.5kg |
||
|
Length, width and height |
60*48*77cm |
|||
|
Packing List |
Host, valve x1, cable ties x4, pole, a set of clips (not included for 50L and 100L), Raw material tape, instruction manual, power cord (only plug device with), Silicone tube 3.8m X 1, insulation tube 1.8m X2 |
|||
Product features
- Reaction at low temperatures, improve reaction efficiency and product quality.
- Stirring the reactants, increases the reaction contact area, improve the solubility of the reactants.
- Reduce the by-products of the reaction, and improve product quality and purity.
- Applicable to a variety of chemical reactions and industrial production.

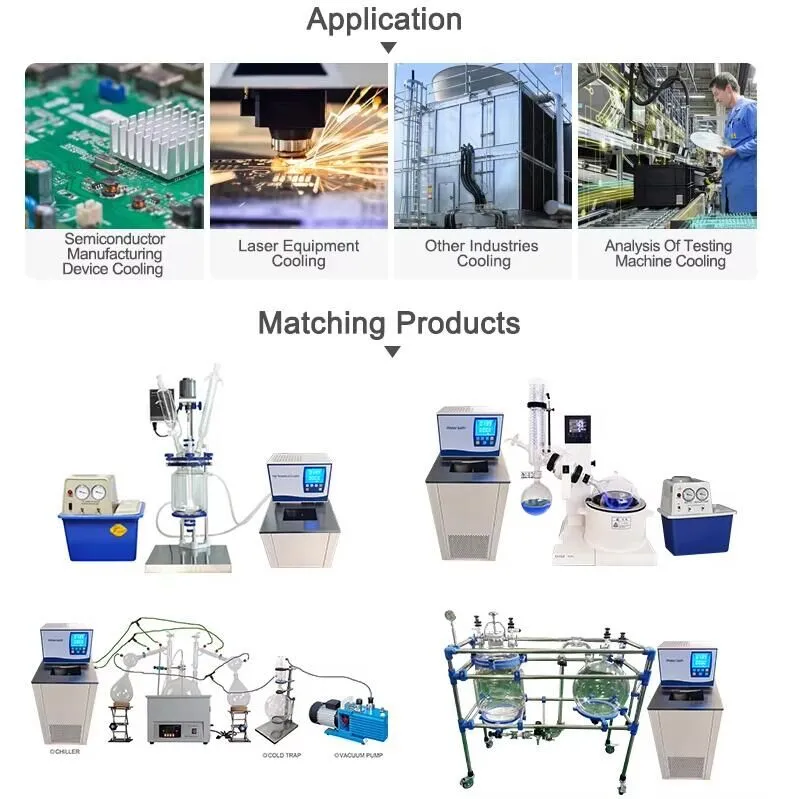

Applications of low-temperature bath
The low-temperature stirred reaction bath is a highly efficient reaction condition that is widely applied in various fields, including chemical reactions, industrial production, research and development, such as synthesizing new materials, preparing high-purity chemicals, studying chemical reaction kinetics, developing new drugs, and producing high-quality food, by conducting reactions at low temperatures and stirring reactants to improve reaction efficiency and product quality.
