Name: Food Industrial Freeze Drying Machine Supplier
Brand: TOPTION
SKU: 5720977

GZVF series Pharmaceutical & Food Industrial Freeze Drying Machine freeze dryers use double color touch screen and PLC as a control center, control system stable and reliable. it can store 33 groups of freeze-drying programs, and each program can be set up into 36 segments. It can display a freeze-drying curve and automatically record data. Freeze-drying data can be output by a USB flash disk. Through ISO CE certification, reliable quality guarantee, on-site installation, and training service are available, factory direct sales help you save cost and time, and 16+ years of research, development, production, sale, and service experience guarantee reliable quality and dependable service.

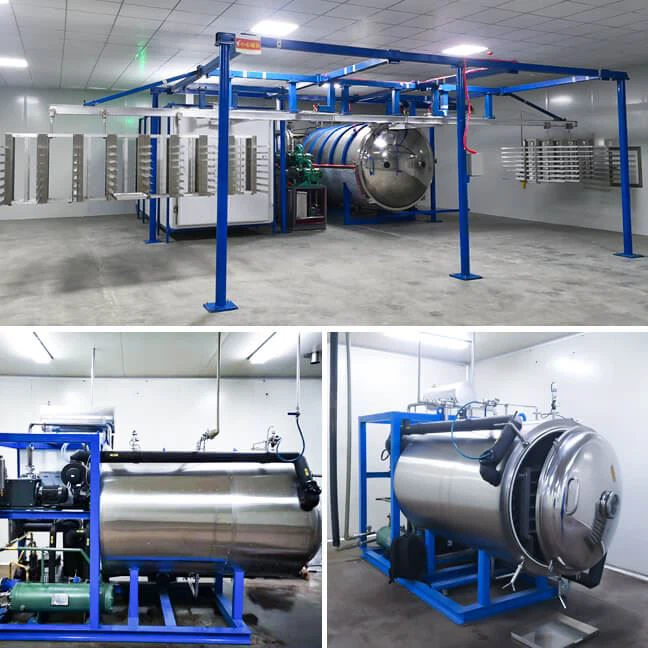

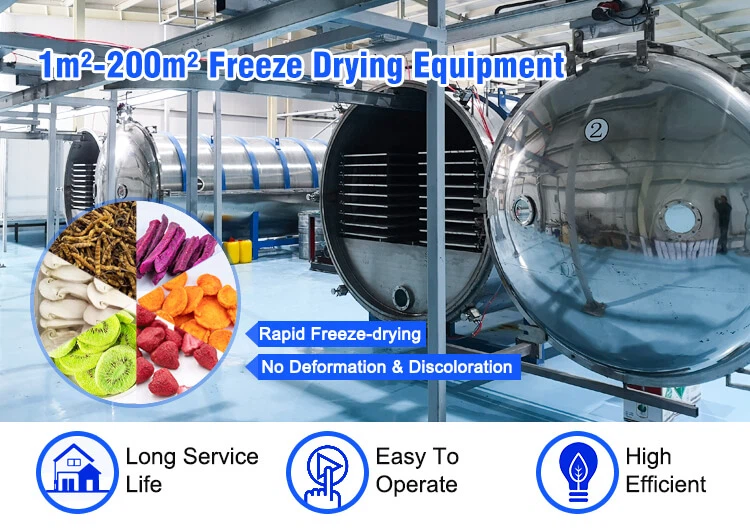

freeze drying equipment supplier

GZVF series freeze dryers pharmaceutical & food industrial freeze drying machine use Bitzer refrigeration unit, condenser temperature can reach < -75 Celsius degree, performance stable. This model is suitable for production.

freeze drying equipment (14)

Technical parameters of freeze-drying machines for the food industry

Model	GZVF-2	GZVF-5	GZVF-12	GZVF-16	GZVF-33	GZVF-44
drying chamber
Shelf area(m 2 )	2.4	5.9	12	16	33	44
Drying chamber size(m)	F0.75 X 0.9	F1.1 X 1.2	F1.4 X 1.5	F1.5 X 2.1	F1600 X 3600	F1800 X 3600
Shelf layers	6+1	8+1	12+1	12+1	14+1	14+1
Shelf size(mm)	500 X 800	1050 X 700	1200 X 800	1800 X 800	3100 X 800	3600 X 1000
Shelf spacing(mm)	70	70	70	75	75	758
Trolley number(set)	N/A	1			2
Trolley number(set)	N/A	1			2
Tray size(mm)	350X500	350X500	400X600	400X600	400X500	400X500
Trays number (pcs)	24	64	96	144	336	448
Heating way	heat conductive oil circulation
Temperature range	room temperature~120
control accuracy	±1?
	condenser
Max. Ice capacity Kg)	24	75	150	225	450	600
Ice capacity(kg/day)	20	60	100	150	300	400
Lowest temperature(?)	-85
Temperature lowing style	direct evaporation
Defrosting method	warm water spray
basic parameters
final vacuum(Pa)	5
Installed power(Kw)	6	12	25	37	72	104
cooling water(m3/h)	air cooling	8 or air-cooling	15 or air-cooling	22 or air-cooling	50	60
cooling water pipe dia	N/A	1 1/4?or N/A	1 1/2? or N/A	1 1/2? or N/A	2?	2?
dimension(m)	1.5x1.5	3x2	4x2.2	5x2.3	8x2.6	9x3.2
height(m)	2	2.2	2.3	2.3	2.6	3.2
weight	1.3	2.5	4	6	15	20

Technical parameters of TOPTION vacuum freeze drying machine

1. Vertical cylindrical condenser, compact structure, with good water capture capacity, no dead corner, easy for defrosting and cleaning.

2. Refrigeration system protection control device: adopt internationally famous brand products that are accurate, stable, safe, and reliable.

3. High-pressure protection system: when the system exhaust pressure more than allowed, the refrigeration unit running will be automatically cut off, to prevent accidents.

4. Middle-pressure regulation system: in the double-stage refrigeration system, proper middle pressure is very important for the operation performance and life of the refrigeration system. When the middle pressure is below the set value, the system will automatically start to adjust. Create conditions for the realization of the lyophilizer unmanned operation.

5. Oil pressure protection system: when the long time operation of the refrigerator, monitor the hydraulic pressure of the refrigerator, to prevent refrigerator damage because of oil lack.

6. The motor temperature protection system: when the refrigerator motor temperature is higher than the set value, in order to protect the refrigerator, the system will automatically stop the operation of the refrigerator.

7. Oil return at low temperature regulating system: when refrigerator works under very low evaporation temperature for a long time, how to make the refrigeration oil well back to the crankcase is very important (lack of refrigeration oil in the system often causes refrigerator "burned"). When the crankcase lacks refrigeration oil, the system automatically start to establish the proper oil levels in the crankcase. Create conditions for the realization of the lyophilizer unmanned operation.

8. Exhaust temperature control system: when the refrigerator exhaust temperature is too high, the system automatically start cooling system, to prevent the high-pressure part of temperature operation. Create conditions for the realization of the lyophilizer unmanned operation.

9. Wet stroke prevention control system: when the high load operation of the refrigerator is, the system can automatically go into the process of adjustment, preventing the wet stroke even the "liquid impact phenomenon". Create conditions for the realization of the lyophilizer unmanned operation.

10. Automatic liquid collection device: when the refrigerator is in standby mode, the device will automatically run, to collect stranded refrigerant in the system to the storage tank, in order to start the freeze dryer again.

11. The machine start protection: when the equipment has all security conditions, the machine will be able to start running.

12. Whole machine structure longitudinal, front and back split type (convenient for transport and placing ).

13. The ozone disinfection function is optional.

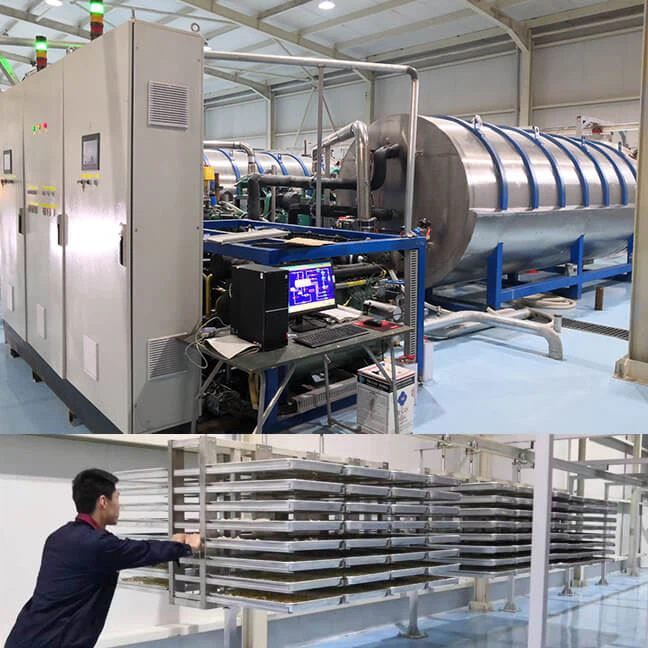

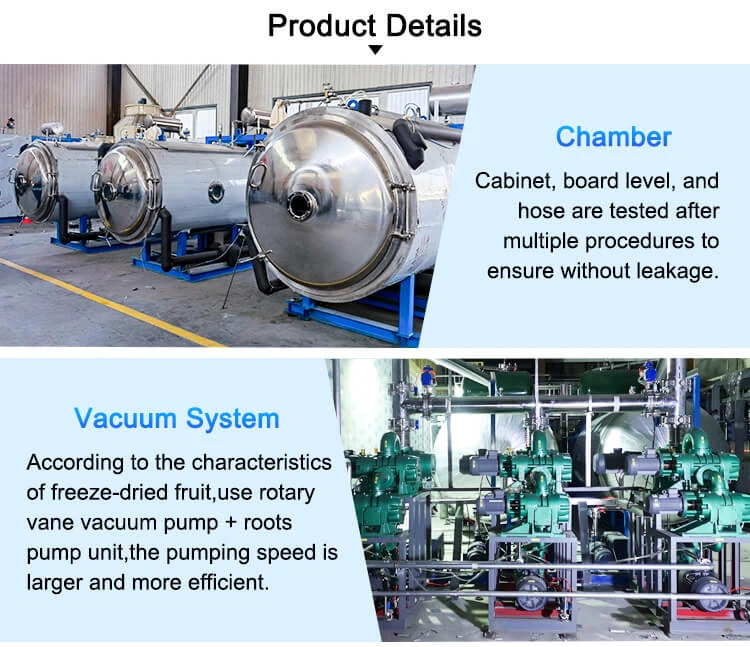

freeze drying machine vacuum system

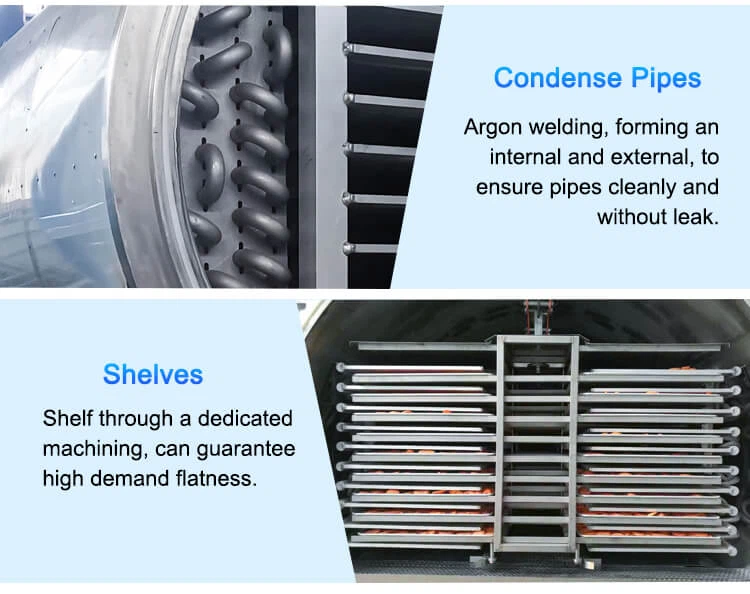

freeze drying machine chamber

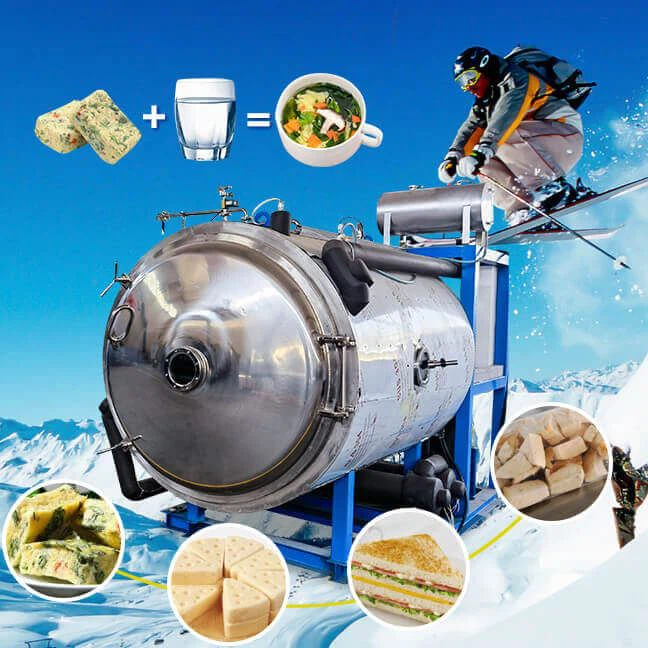

Export-Oriented Pharmaceutical & Food Industrial Freeze Dryer

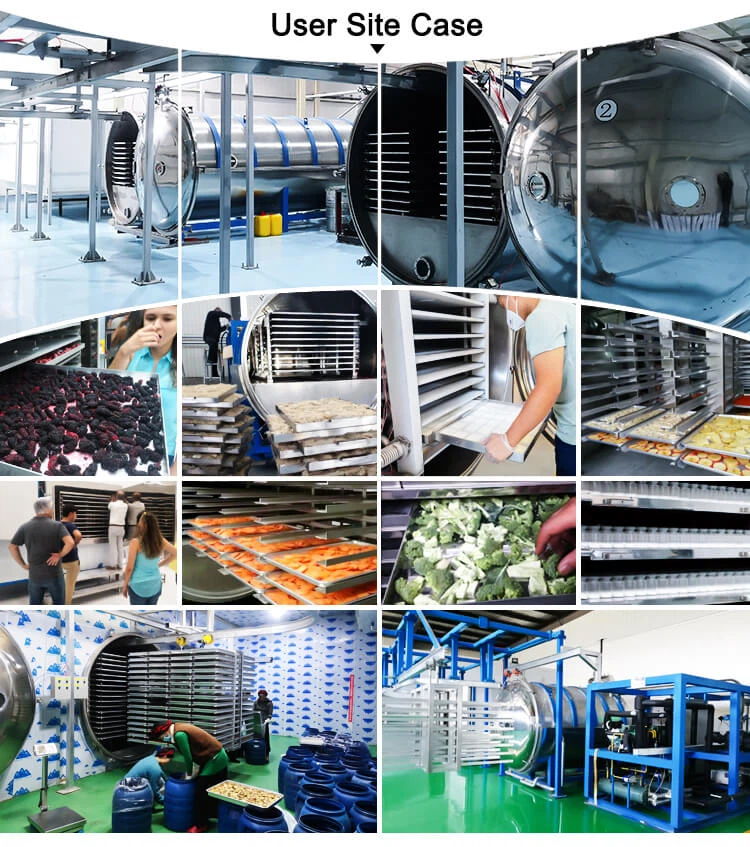

The picture below is some case feedback from our customers for your reference.

freeze drying equipment project

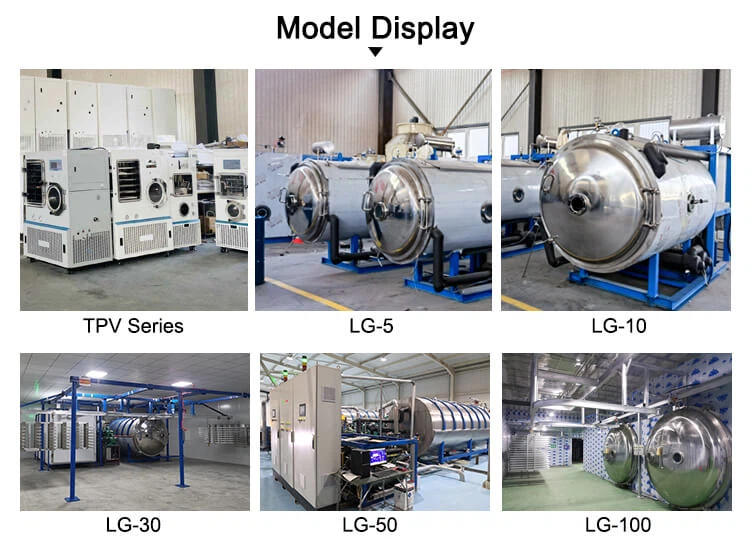

freeze drying equipment models
